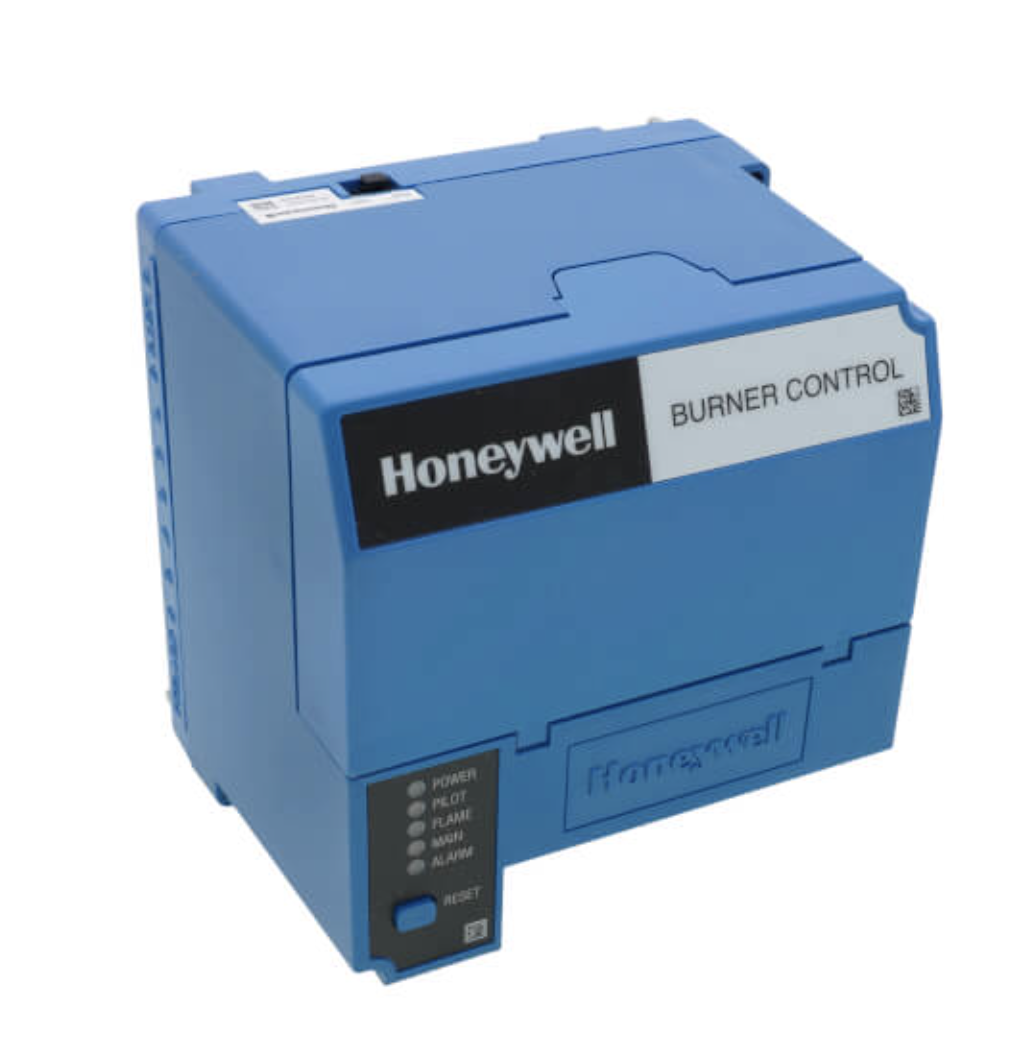

The Honeywell RM7840L1075 is a robust programmable burner control unit from Honeywell’s 7800 series, engineered for use in commercial and industrial combustion systems. It is a microprocessor-based integrated control that automatically manages the ignition sequence, flame supervision, safety interlocks, and purge logic for single-burner applications using gas, oil, coal, or combination fuels.
Key features include:
-
Automatic Burner Sequencing: Controls the full firing cycle from purge and pilot ignition to main flame establishment and post-purge sequences with selectable timing. Flame Supervision & Diagnostics: Continuously monitors flame status and provides system-status indication and self-diagnostics with LED indicators.
-
Valve Proving and Proving Sequences: Supports low-fire/high-fire (LHL-LF & HF) proving and optional valve proving sequences to ensure safe operation.
-
Safety Interlocks: Includes lockout interlocks that shut down the burner on unsafe conditions and retains fault history in non-volatile memory.
-
Configurable Flame Establishing Periods: Pilot flame trial can be set to 4 or 10 seconds, and main flame to 10 or 15 seconds for flexible combustion control.
-
Display-Required Configuration: Configuration of purge timing, valve proving, and airflow check settings requires the S7800A1142 keyboard display module (not included with the control).
-
Environmental Ratings: Designed to operate in challenging environments from approximately –40 °F to +140 °F (–40 °C to +60 °C).
-
Compatibility: Works with plug-in flame amplifiers and is compatible with Honeywell flame detectors, providing flexibility and integration with existing systems.
This burner control is widely used in industrial boilers, furnaces, process heaters, and other combustion equipment where safety, reliability, and programmable control are required.
