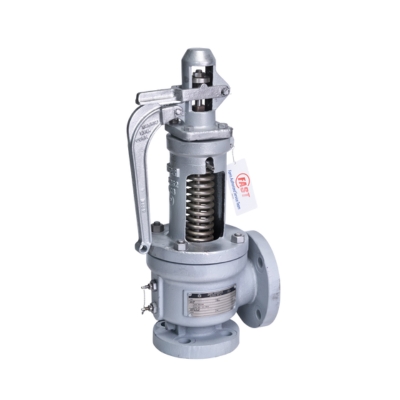

Key features and specifications include:
- Design: Full nozzle design, open bonnet, and a temperature equalizing disc for maximum seat tightness.
- Certifications: Meets ASME/NB Section I and VIII for steam, CSA B51, ISO 9001-2008, and PED 97/23/EC standards.
- Pressure and Temperature: Set pressure ranges from 15 to 1000 psig (1.0 to 68.9 barg), with a temperature limit up to 1000°F (538°C).
- Materials: Features a steel body and open bonnet with stainless steel trim; chrome moly body used above 800°F.
- Function: It opens automatically when system pressure exceeds a preset limit and closes once the pressure is back to normal.
